IC62LV12816L Datasheet - ICSI

IC62LV12816L ULTRA LOW POWER CMOS STATIC RAM

The 1+51 IC62LV12816L and IC62LV12816LL are high-speed, 2.097,152-bit static RAMs organized as 131,072 words by 16 bits. They are fabricated using 1+51's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low.
www.DataSheet4U.com IC62LV12816L IC62LV12816LL IC62LV12816L IC62LV12816LL 128K x 16 LOW VOLTAGE, ULTRA LOW POWER CMOS STATIC RAM .EATURES • High-speed access times: 55, 70, 100 ns • CMOS low power operation 60 mW (typical) operating 3 µW (typical) CMOS standby • TTL compatible interface levels • Single 2.7V-3.6V Vcc power supply • .ully static operation: no clock or refresh required • Three state outputs • Data control for upper and lower bytes • Industrial temperature avai.

IC62LV12816L Datasheet (165.60 KB)

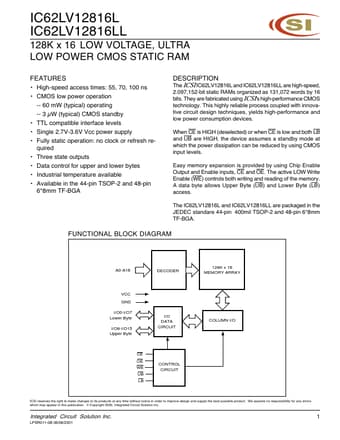

Preview of IC62LV12816L PDF
IC62LV12816L Datasheet Preview Page 2 IC62LV12816L Datasheet Preview Page 3

Datasheet Details

Part number:

IC62LV12816L

Manufacturer:

ICSI

File Size:

165.60 KB

Description:

Ultra low power cmos static ram.
