ID9S6015D Datasheet - IDRIVER

ID9S6015D, 600V Half Bridge Gate Driver

ID9S6015D 600V Half Bridge Gate Drive IC hh General .
The ID9S6015D is a wafer level production, which is a single phase high voltage power MOSFET and IGBT gate driver optimized to drive the gates of both.

datasheet Preview Page 1 from Datasheet4u.com

ID9S6015D-IDRIVER.pdf

ID9S6015D Datasheet Preview — Preview of ID9S6015D PDF

Datasheet Details

Part number:

ID9S6015D

Manufacturer:

IDRIVER

File Size:

572.68 KB

Description:

600V Half Bridge Gate Driver

Features

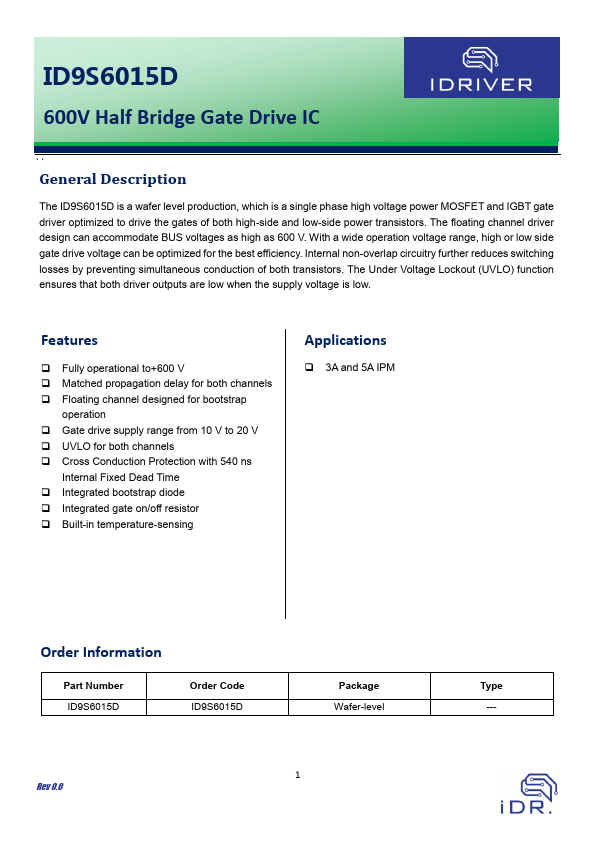

*  Fully operational to+600 V  Matched propagation delay for both channels  Floating channel designed for bootstrap operation  Gate drive supply range from 10 V to 20 V  UVLO for both channels  Cross Conduction Protection with 540 ns Internal Fixed Dead Time  Integrated bootstrap diode  Integr

Applications

*  3A and 5A IPM Order Information Part Number ID9S6015D Order Code ID9S6015D Package Wafer-level 1 Rev 0.0 Type

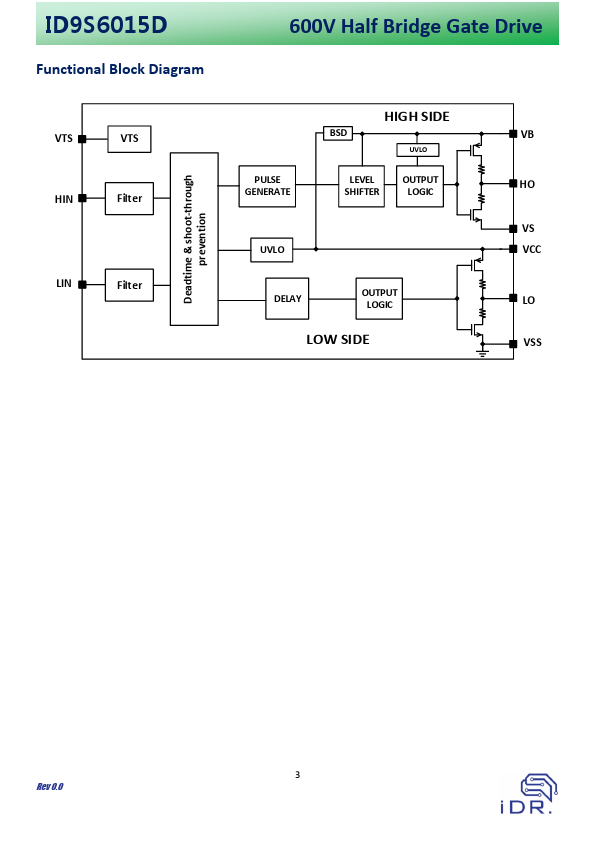

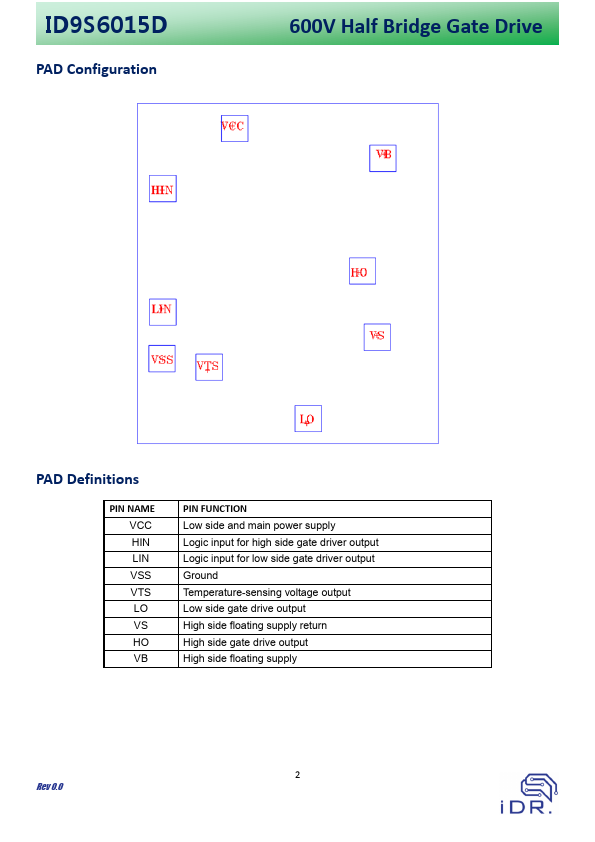

* - ID9S6015D PAICD Configuration 600V Half Bridge Gate Drive PAD Definitions PIN NAME VCC HIN LIN VSS VTS LO VS HO VB PIN FUNCTION Low side and main power supply Logic inp
