553S - Low Skew 1 to 4 Clock Buffer

IDT

The 553S by IDT is a Low Skew 1 to 4 Clock Buffer. Below is the official datasheet preview.

📥 Download Datasheet

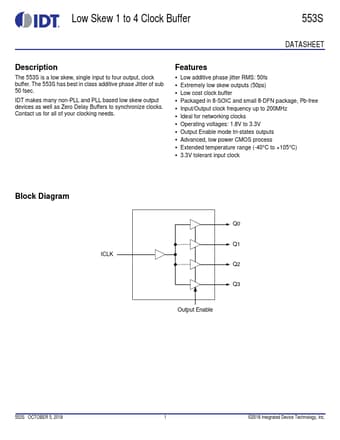

553S Low Skew 1 to 4 Clock Buffer by IDT - Datasheet Preview — Official preview page of the 553S Low Skew 1 to 4 Clock Buffer datasheet (IDT).

Datasheet Details

Part number	553S
Manufacturer	IDT
File Size	337.44 KB
Description	Low Skew 1 to 4 Clock Buffer
Datasheet	553S-IDT.pdf
Additional preview pages of the 553S datasheet.

553S Product details

Description

The 553S is a low skew, single input to four output, clock buffer.

Features

Low additive phase jitter RMS: 50fs.
Extremely low skew outputs (50ps).
Low cost clock buffer.
Packaged in 8-SOIC and small 8-DFN package, Pb-free.
Input/Output clock frequency up to 200MHz.
Ideal for networking clocks.
Operating voltages: 1.8V to 3.3V.
Output Enable mode tri-states outputs.
Advanced, low power CMOS process.
Extended temperature range (-40°C to +105°C).
3.3V tolerant input clock.
