9DBL06 - 6-output 3.3V PCIe Zero-Delay Buffer

IDT

📥 Download Datasheet

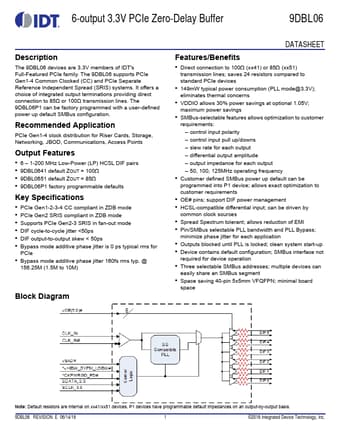

9DBL06 Datasheet Preview — Preview of 9DBL06 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	9DBL06
Manufacturer	IDT
File Size	306.45 KB
Description	6-output 3.3V PCIe Zero-Delay Buffer
Datasheet	9DBL06-IDT.pdf

9DBL06 Product details

Description

The 9DBL06 devices are 3.3V members of IDT's Full-Featured PCIe family.

Features

6.
1-200 MHz Low-Power (LP) HCSL DIF pairs.
9DBL0641 default ZOUT = 100.
9DBL0651 default ZOUT = 85.
9DBL06P1 factory programmable defaults Key Specifications.
PCIe Gen1-2-3-4 CC compliant in ZDB mode.
PCIe Gen2 SRIS compliant in ZDB mode.
Supports PCIe Gen2-3 SRIS in fan-out mode.
DIF cycle-to-cycle jitter.
