DAC1627D1G25 Datasheet, Dac, IDT

DAC1627D1G25 Features

• Dac Dual-channel 16-bit resolution 1.25 Gsps maximum update rate Selectable ×2, ×4 and ×8 interpolation filters Low noise capacitor-free integrated Phase-Locked Loop (PLL) Embedded Numeric

PDF File Details

Part number:

DAC1627D1G25

Manufacturer:

IDT

File Size:

0.99MB

Download:

📄 Datasheet

Description:

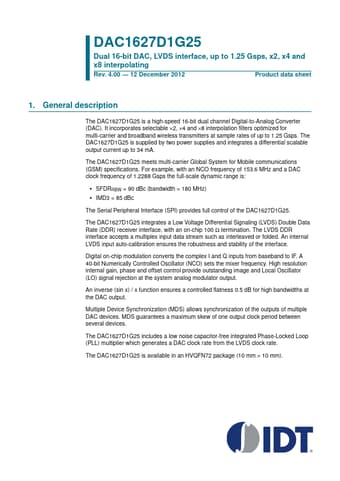

Dual 16-bit dac. The DAC1627D1G25 is a high-speed 16-bit dual channel Digital-to-Analog Converter (DAC). It incorporates selectable ×2, ×4 and ×8 inte

DAC1627D1G25 Application

• Applications Wireless infrastructure: MC_GSM, LTE, WiMAX, GSM, CDMA, WCDMA, TD-SCDMA Communications: LMDS/MMDS, point-to-point Direct Digital Synth
