DAC16 Datasheet, Dac, Analog Devices

DAC16 Features

  • Dac ؎1 LSB Differential Linearity (max) Guaranteed Monotonic Over Temperature Range ؎2 LSB Integral Linearity (max) 500 ns Settling Time 5 mA Full-Scale Output TTL/CMOS Compatible Low Power

PDF File Details

Part number:

DAC16

Manufacturer:

Analog Devices ↗

File Size:

190.41kb

Download:

📄 Datasheet

Description:

16-bit high speed current-output dac. 0.1 The DAC16 is a 16-bit high speed current-output digital-toanalog converter with a settling time of 500 ns. A unique combination

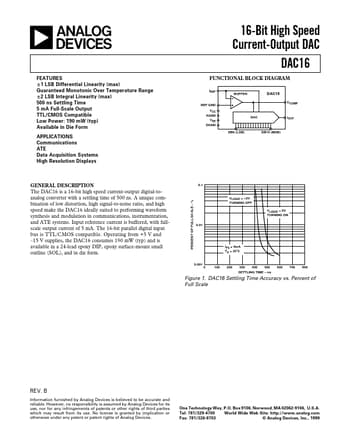

Datasheet Preview: DAC16 📥 Download PDF (190.41kb)
Page 2 of DAC16 Page 3 of DAC16

DAC16 Application

  • Applications Communications ATE Data Acquisition Systems High Resolution Displays IREF REF GND VCC AGND VEE DGND 16-Bit High Speed Current-Output D
