DAC1627D1G25

Dual 16-bit DAC

DAC1627D1G25 Features

* Dual 16-bit resolution

* 1.25 Gsps maximum update rate

* Selectable ×2, ×4 and ×8 interpolation filters

* Very low noise capacitor-free integrated Phase-Locked Loop (PLL)

* Embedded Numerically Controlled Oscillator (NCO) with 40-bit programmable frequency

DAC1627D1G25 General Description

The DAC1627D1G25 is a high-speed 16-bit dual channel Digital-to-Analog Converter (DAC) with selectable ×2, ×4 and ×8 interpolating filters optimized for multi-carrier and broadband wireless transmitters at sample rates of up to 1.25 Gsps. Supplied from a 3.3 V and a 1.8 V source, the DAC1627D1G25 in.

DAC1627D1G25 Datasheet (1.78 MB)

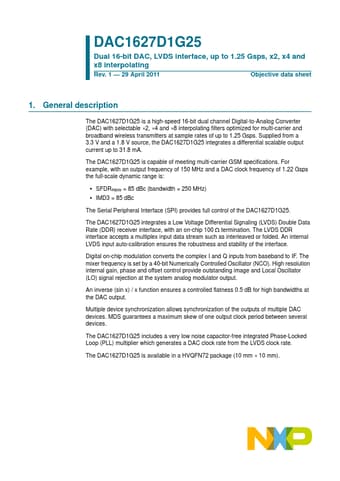

Preview of DAC1627D1G25 PDF

Datasheet Details

Part number:

DAC1627D1G25

Manufacturer:

NXP ↗ Semiconductors

File Size:

1.78 MB

Description:

Dual 16-bit dac.
DAC1627D1G25 Dual 16-bit DAC, LVDS interface, up to 1.25 Gsps, x2, x4 and x8 interpolating Rev. 1

* 29 April 2011 Objective data sheet 1. Gen.
