IDT54FCT161CT FAST CMOS SYNCHRONOUS PRESETTABLE BINARY COUNTERS

The IDT54/74FCT161T/163T, IDT54/74FCT161AT/ 163AT and IDT54/74FCT161CT/163CT are high-speed synchronous modulo-16 binary counters built using an advanced dual metal CMOS technology. They are synchronously presettable for application in programmable dividers and have two types of count enable inputs.

IDT54FCT161CT Features

* Std., A and C speed grades

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* High drive outputs (-15mA IOH, 48mA IOL)

* Meets or exceeds

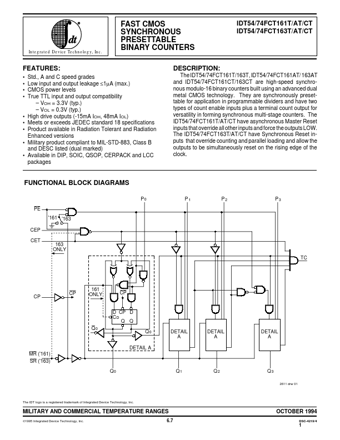

IDT54FCT161AT_IntegratedDeviceTechnology.pdf

IDT54FCT161CT Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT54FCT161CT, IDT54FCT161AT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT54FCT161CT, IDT54FCT161AT

Manufacturer:

IDT

File Size:

94.62 KB

Description:

Fast cmos synchronous presettable binary counters.

Note:

This datasheet PDF includes multiple part numbers: IDT54FCT161CT, IDT54FCT161AT.
Please refer to the document for exact specifications by model.
