IDT54FCT16245AT - FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVER

This page provides the datasheet information for the IDT54FCT16245AT, a member of the IDT54FCT16245T FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVER family.

Datasheet Summary

Description

The FCT16245T 16-bit transceiver is built using advanced dual metal CMOS technology.

These high-speed, low-power transceivers are ideal for synchronous communication between two busses (A and B).

Features

  • 0.5 MICRON CMOS Technology.
  • High-speed, low-power CMOS replacement for ABT functions.
  • Typical tSK(o) (Output Skew) < 250ps.
  • Low input and output leakage ≤ 1µA (max. ).
  • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0).
  • High drive outputs (.
  • 32mA IOH, 64mA IOL).
  • Power off disable outputs permit “live insertion”.
  • Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.

📥 Download Datasheet

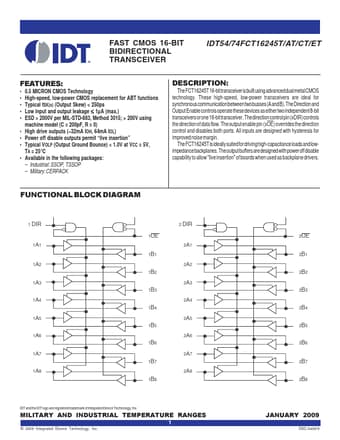

Datasheet preview – IDT54FCT16245AT
