IDT54FCT16244T FAST CMOS 16-BIT BUFFER/LINE DRIVER

The FCT16244T 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation. These devices have a flow through pin organization, and shrink packaging to simplify board layout. All inputs are designed with hysteresis for improved noise.

IDT54FCT16244T Features

* 0.5 MICRON CMOS Technology

* High-speed, low-power CMOS replacement for ABT functions

* Typical tSK(o) (Output Skew) < 250ps

* Low input and output leakage ≤ 1µA (max.)

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0

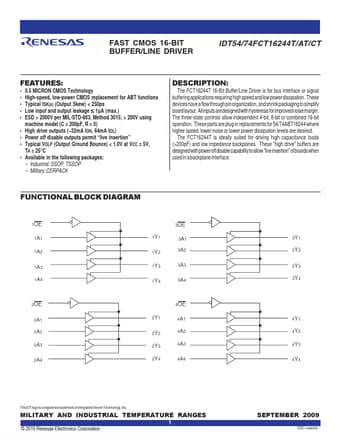

IDT74FCT16244T-Renesas.pdf

IDT54FCT16244T Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT54FCT16244T, IDT74FCT16244T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT54FCT16244T, IDT74FCT16244T

Manufacturer:

Renesas ↗

File Size:

182.74 KB

Description:

Fast cmos 16-bit buffer/line driver.

Note:

This datasheet PDF includes multiple part numbers: IDT54FCT16244T, IDT74FCT16244T.
Please refer to the document for exact specifications by model.
