IDT54FCT16244CT - FAST CMOS 16-BIT BUFFER/LINE DRIVER

This page provides the datasheet information for the IDT54FCT16244CT, a member of the IDT74FCT16244T FAST CMOS 16-BIT BUFFER/LINE DRIVER family.

Datasheet Summary

Description

The FCT16244T 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation.

These devices have a flow through pin organization, and shrink packaging to simplify board layout.

Features

  • 0.5 MICRON CMOS Technology.
  • High-speed, low-power CMOS replacement for ABT functions.
  • Typical tSK(o) (Output Skew) < 250ps.
  • Low input and output leakage ≤ 1µA (max. ).
  • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0).
  • High drive outputs (.
  • 32mA IOH, 64mA IOL).
  • Power off disable outputs permit “live insertion”.
  • Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.

📥 Download Datasheet

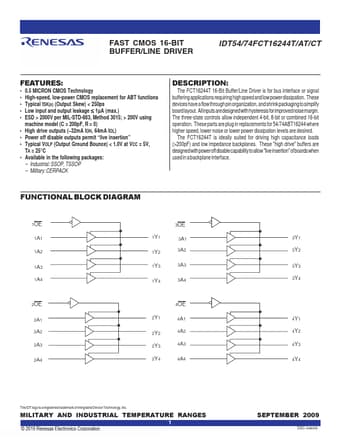

Datasheet preview – IDT54FCT16244CT
