IDT54FCT810CT, IDT54FCT810CTD Datasheet - IDT

IDT54FCT810CT FAST CMOS BUFFER/CLOCK DRIVER

The IDT54/74FCT810BT/CT is a dual bank inverting/ noninverting clock driver built using advanced dual metal CMOS technology. It consists of two banks of drivers, one inverting and one non-inverting. Each bank drives five output buffers from a standard TTL-compatible input. The IDT54/ 74FCT810BT/CT .

IDT54FCT810CT Features

* 0.5 MICRON CMOS technology

* Guaranteed low skew < 600ps (max.)

* Very low duty cycle distortion < 700ps (max.)

* Low CMOS power levels

* TTL compatible inputs and outputs

* TTL level output voltage swings

* High drive:

* 32mA IOH, 48

IDT54FCT810CTD_IntegratedDeviceTechnology.pdf

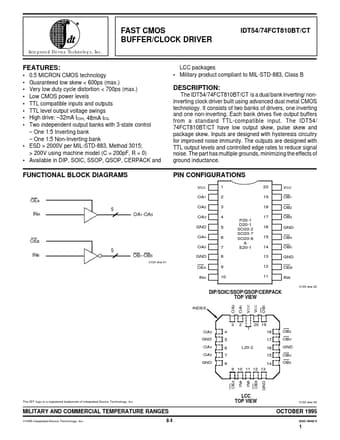

IDT54FCT810CT Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT54FCT810CT, IDT54FCT810CTD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT54FCT810CT, IDT54FCT810CTD

Manufacturer:

IDT

File Size:

107.04 KB

Description:

Fast cmos buffer/clock driver.

Note:

This datasheet PDF includes multiple part numbers: IDT54FCT810CT, IDT54FCT810CTD.
Please refer to the document for exact specifications by model.
