IDT71322L CMOS Dual-Port RAM 16K

The IDT71322 is an extremely high-speed 2K x 8 dual-port static RAM with full on-chip hardware support of semaphore signalling between the two ports. the IDT71322 provides two independent ports with separate control, address and 1/0 pins that permit independent, asynchronous access for reads and wr.

IDT71322L Features

* High-speed access -Military: 55/70/90/100ns (max.) -Commercial: 45/55170/90ns (max.)

* Low-power operation -IDT71322S Active: 325mW (typ.) Standby: 5mW (typ.) -IDT71322L Active: 325mW (typ.) Standby: 1mW (typ.)

* Fully asynchronous operation from either port

* Full

IDT71322S-IDT.pdf

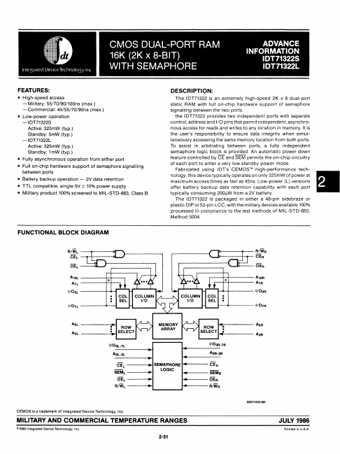

IDT71322L Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT71322L, IDT71322S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT71322L, IDT71322S

Manufacturer:

IDT

File Size:

99.08 KB

Description:

Cmos dual-port ram 16k.

Note:

This datasheet PDF includes multiple part numbers: IDT71322L, IDT71322S.
Please refer to the document for exact specifications by model.
