IDT7130SA - HIGH-SPEED 1K x 8 DUAL-PORT STATIC RAM

Product Overview

Integrated Device Technology

📥 Download Datasheet

IDT7130SA HIGH-SPEED 1K x 8 DUAL-PORT STATIC RAM by Integrated Device Technology - Datasheet Preview — Datasheet preview – IDT7130SA

Datasheet Details

Part number	IDT7130SA
Manufacturer	Integrated Device Technology
File Size	206.52 KB
Description	HIGH-SPEED 1K x 8 DUAL-PORT STATIC RAM
Datasheet	IDT7130SA Datasheet
Note	This datasheet PDF includes multiple part numbers: IDT7130SA, IDT7130. Please refer to the document for exact specifications by model.

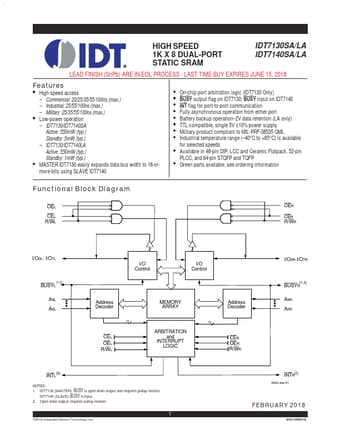

Additional preview pages of the IDT7130SA datasheet.

Product details

Features

High-speed access.
Commercial: 20/25/35/55/100ns (max. ).
Industrial: 25/55/100ns (max. ).
Military: 25/35/55/100ns (max. ).
Low-power operation.
IDT7130/IDT7140SA.
Active: 550mW (typ. ).
Standby: 5mW (typ. ).
IDT7130/IDT7140LA.
Active: 550mW (typ. ).
Standby: 1mW (typ. ).
MASTER IDT7130 easily expands data bus width to 16-ormore-bits using SLAVE IDT7140.
On-chip port arbitration logic (IDT7130 Only).
