IDT74FCT574A FAST CMOS OCTAL D REGISTERS

The IDT54/74FCT374/A/C, IDT54/74FCT534/A/C and IDT54/74FCT574/A/C are 8-bit registers built using an advanced dual metal CMOS technology. These registers consist of eight D-type flip-flops with a buffered common clock and buffered 3-state output control. When the output.

IDT74FCT574A Features

* IDT54/74FCT374/534/574 equivalent to FAST™ speed and drive

* IDT54/74FCT374A/534A/574A up to 30% faster than FAST

* IDT54/74FCT374C/534C/574C up to 50% faster than FAST

* IOL = 48mA (commercial) and 32mA (military)

* CMOS power levels (1mW typ. static)

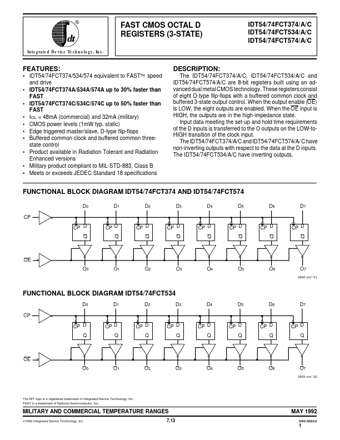

IDT74FCT574_IntegratedDeviceTechnology.pdf

IDT74FCT574A Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT74FCT574A, IDT74FCT574. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT74FCT574A, IDT74FCT574

Manufacturer:

IDT

File Size:

145.24 KB

Description:

Fast cmos octal d registers.

Note:

This datasheet PDF includes multiple part numbers: IDT74FCT574A, IDT74FCT574.
Please refer to the document for exact specifications by model.
