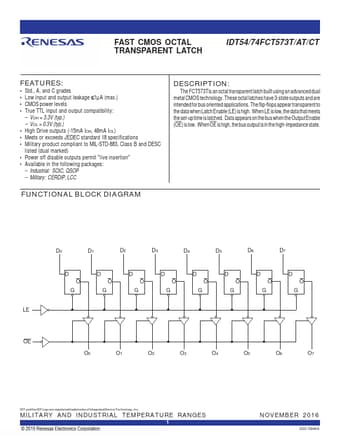

IDT74FCT573CT, IDT54FCT573T, FAST CMOS OCTAL TRANSPARENT LATCH

IDT54/74FCT573T/AT/CT FASTCMOSOCTALTRANSPARENTLATCH MILITARYANDINDUSTRIALTEMPERATURERANGES FAST CMOS OCTAL TRANSPARENT LATCH IDT54/74FCT573T/AT/CT .
The FCT573Tis an octal transparent latch built using an advanced dual metal CMOS technology.

IDT54FCT573T-Renesas.pdf

IDT74FCT573CT Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT74FCT573CT, IDT54FCT573T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT74FCT573CT, IDT54FCT573T

Manufacturer:

Renesas ↗

File Size:

180.27 KB

Description:

FAST CMOS OCTAL TRANSPARENT LATCH

Note:

This datasheet PDF includes multiple part numbers: IDT74FCT573CT, IDT54FCT573T.
Please refer to the document for exact specifications by model.

Features

* Std. , A, and C grades
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility:
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* High Drive outputs (-15mA IOH, 48mA IOL)
* Meets or exceeds JED

Applications

* The flip-flops appear transparent to the data when Latch Enable (LE) is high. When LE is low, the data that meets the set-up time is latched. Data appears on the bus when the Output Enable (OE) is low. When OE is high, the bus output is in the high-impedance state. FUNCTIONAL BLOCK DIAGRAM D0 D1
