IDT74FCT574T, FAST CMOS OCTAL D REGISTERS

IDT54/74FCT574T/AT/CT FAST CMOS OCTAL D REGISTERS (3-STATE) MILITARY AND INDUSTRIAL TEMPERATURE RANGES FAST CMOS OCTAL D REGISTERS (3-STATE) IDT54/.
The FCT574T is an 8-bit register built using an advanced dual metal CMOS technology.

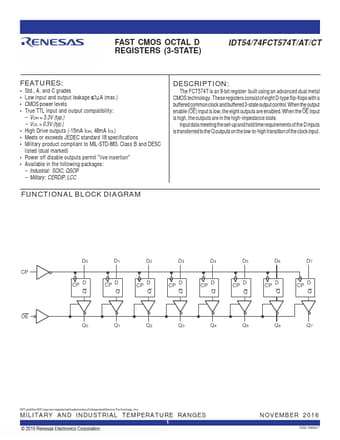

datasheet Preview Page 1 from Datasheet4u.com

IDT74FCT574T-Renesas.pdf

IDT74FCT574T Datasheet Preview — Preview of IDT74FCT574T PDF

Datasheet Details

Part number:

IDT74FCT574T

Manufacturer:

Renesas ↗

File Size:

186.09 KB

Description:

FAST CMOS OCTAL D REGISTERS

Features

* Std. , A, and C grades
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility:
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* High Drive outputs (-15mA IOH, 48mA IOL)
* Meets or exceeds JED
