IDT74FCT807BT, IDT74FCT807, FAST CMOS 1-TO-10 CLOCK DRIVER

Integrated Device Technology, Inc.FAST CMOS 1-TO-10 CLOCK DRIVER IDT54/74FCT807BT/CT .
The IDT54/74FCT807BT/CT clock driver is built using advanced dual metal CMOS technology.

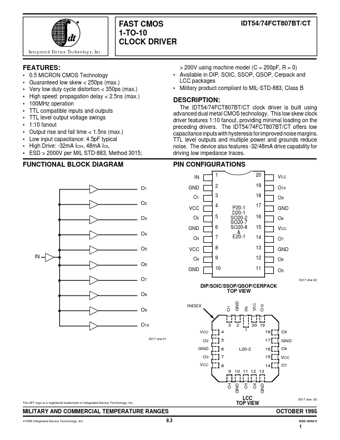

datasheet Preview Page 1 from Datasheet4u.com

IDT74FCT807_IntegratedDeviceTechnology.pdf

IDT74FCT807BT Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT74FCT807BT, IDT74FCT807. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT74FCT807BT, IDT74FCT807

Manufacturer:

IDT

File Size:

130.12 KB

Description:

FAST CMOS 1-TO-10 CLOCK DRIVER

Note:

This datasheet PDF includes multiple part numbers: IDT74FCT807BT, IDT74FCT807.
Please refer to the document for exact specifications by model.

Features

* 0.5 MICRON CMOS Technology
* Guaranteed low skew < 250ps (max. )
* Very low duty cycle distortion < 350ps (max. )
* High speed: propagation delay < 2.5ns (max. )
* 100MHz operation
* TTL compatible inputs and outputs
* TTL level output voltage
