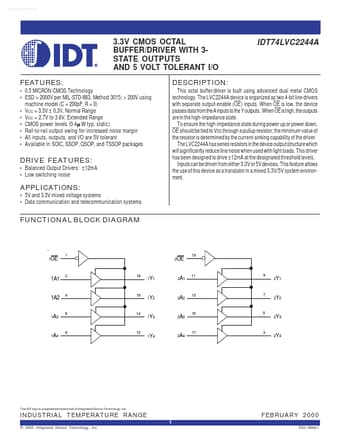

www.DataSheet4U.com IDT74LVC2244A 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3STATE OUTPUTS AND 5 VOLT TOLERANT I/O • 0.5 MICRON CMOS Technology • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) • VCC = 3.3V ± 0.3V, Normal Range • VCC = 2.7V to 3.6V, Extended Range • CMOS power levels (0.4µ W typ. static) • Rail-to-rail output swing for increased noise margin • All inputs, outputs, and I/O are 5V tolerant • Available in SOIC, SSOP, QSOP, and TSSOP packages IDT74LVC2244A FEATURES: DESCRIPTION: DRIVE FEATURES: APPLICATIONS: • Balanced Output Drivers: ±12mA • Low switching noise This octal buffer/driver is built using advanced dual metal CMOS technology.
