- 1-TO-5 DIFFERENTIAL-TO-3.3V LVPECL FANOUT BUFFER
IDT85304-01 Description

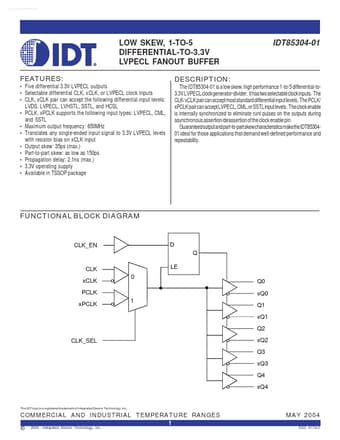

www.DataSheet4U.com IDT85304-01 LOW SKEW, 1-TO-5 DIFFERENTIAL-TO-3.3V LVPECL COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGES LOW SKEW, 1-TO-5 DIFFEREN.
The IDT85304-01 is a low skew, high performance 1-to-5 differential-to3.
IDT85304-01 Features
* Five differential 3.3V LVPECL outputs
* Selectable differential CLK, xCLK, or LVPECL clock inputs
* CLK, xCLK pair can accept the following differential input levels: LVDS, LVPECL, LVHSTL, SSTL, and HCSL
* PCLK, xPCLK supports the following input types: LVPECL, CML
IDT85304-01 Applications
* that demand well-defined performance and repeatability. FUNCTIONAL BLOCK DIAGRAM
CLK_EN
D Q
CLK xCLK PCLK xPCLK 1 0
LE Q0 xQ0 Q1 xQ1 Q2
CLK_SEL
xQ2 Q3 xQ3 Q4 xQ4
The IDT logo is a registered trademark of Integrated Device Technology, Inc. COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGES
