IDT821054 - QUAD PROGRAMMABLE PCM CODEC

Datasheet Summary

Description

The IDT821054 is a feature rich, single-chip, programmable 4channel PCM CODEC with on-chip filters.

Features

  • 4-channel CODEC with on-chip digital filters Software selectable A/µ-law, linear code conversion Meets ITU-T G.711 - G.714 requirements Programmable digital filters adapting to system demands: - AC impedance matching - Transhybrid balance - Frequency response correction - Gain setting Supports two programmable PCM buses Flexible PCM interface with up to 128 programmable time slots, data rate from 512 kbits/s to 8.192 Mbits/s MPI control interface Broadcast.

📥 Download Datasheet

Datasheet preview – IDT821054

Datasheet Details

Part number IDT821054
Manufacturer Integrated Device
File Size 506.78 KB
Description QUAD PROGRAMMABLE PCM CODEC
Datasheet download datasheet IDT821054 Datasheet
Additional preview pages of the IDT821054 datasheet.

📁 Similar Datasheet

  • IDT821034 - QUAD PCM CODEC (Renesas)
  • IDT821621 - LONG HAUL SLIC (Integrated Device Technology)
  • IDT82P20416 - 16-Channel Short Haul T1/E1/J1 Line Interface (IDT)
  • IDT82P20516 - 16-Channel Short Haul E1 Line Interface (IDT)
  • IDT82P2281 - Single T1/E1/J1 Long Haul Short Haul Transceiver (IDT)
  • IDT82P2282 - Dual T1/E1/J1 Long Haul / Short Haul Transceiver (IDT)
  • IDT82P2284 - Quad T1/E1/J1 Long Haul / Short Haul Transceiver (IDT)
  • IDT82P2288 - Octal T1/E1/J1 Long Haul Short Haul Transceiver (IDT)
  • IDT82P2521 - High-Density E1 Line Interface (IDT)
  • IDT82P2808 - High-Density T1/E1/J1 Line Interface (IDT)
Other Datasheets by Integrated Device
  • IDT821024 - QUAD NON-PROGRAMMABLE PCM CODEC
  • IDT821034 - QUAD PCM CODEC
  • IDT821068 - OCTAL PROGRAMMABLE PCM CODEC
  • IDT82V1671 - CHIPSET OF RINGING SUBSCRIBER LINE INTERFACE CIRCUIT (RSLIC) & QUAD PROGRAMMABLE PCM CODEC
  • IDT82V2058 - OCTAL E1 SHORT HAUL LINE INTERFACE
  • IDT82V2084 - QUAD CHANNEL T1/E1/J1 LONG HAUL/ SHORT HAUL LINE INTERFACE
  • IDT82V2088 - OCTAL CHANNEL T1/E1/J1 LONG HAUL/ SHORT HAUL LINE INTERFACE
  • IDT82V3011 - T1/E1/OC3 WAN PLL

Full PDF Text Transcription

Click to expand full text

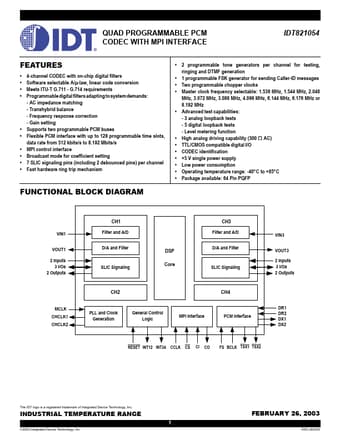

QUAD PROGRAMMABLE PCM CODEC WITH MPI INTERFACE FEATURES • • • • 4-channel CODEC with on-chip digital filters Software selectable A/µ-law, linear code conversion Meets ITU-T G.711 - G.714 requirements Programmable digital filters adapting to system demands: - AC impedance matching - Transhybrid balance - Frequency response correction - Gain setting Supports two programmable PCM buses Flexible PCM interface with up to 128 programmable time slots, data rate from 512 kbits/s to 8.
