IDT82V2084 Datasheet - Integrated Device

IDT82V2084 QUAD CHANNEL T1/E1/J1 LONG HAUL/ SHORT HAUL LINE INTERFACE

The IDT82V2084 can be configured as a quad T1, quad E1 or quad J1 Line Interface Unit. In receive path, an Adaptive Equalizer is integrated to remove the distortion introduced by the cable attenuation. The IDT82V2084 also performs clock/data recovery, AMI/B8ZS/HDB3 line decoding and detects and rep.

IDT82V2084 Features

* Four channel T1/E1/J1 long haul/short haul line interfaces Supports HPS (Hitless Protection Switching) for 1+1 protection without external relays Receiver sensitivity exceeds -36 dB@772KHz and -43 dB@1024 KHz Programmable T1/E1/J1 switchab

IDT82V2084_IntegratedDeviceTechnology.pdf

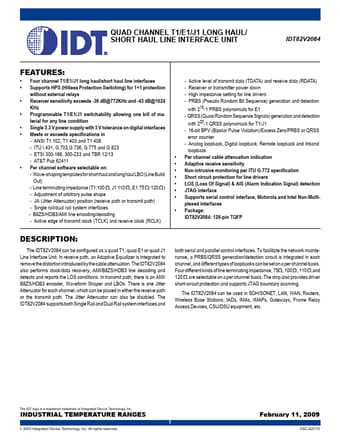

Preview of IDT82V2084 PDF
IDT82V2084 Datasheet Preview Page 2 IDT82V2084 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT82V2084

Manufacturer:

Integrated Device

File Size:

0.97 MB

Description:

Quad channel t1/e1/j1 long haul/ short haul line interface.
