IDT82V2082 - Dual channel T1/E1/J1 long haul/short haul line interface

IDT82V2082 Description

DUAL CHANNEL T1/E1/J1 LONG HAUL/SHORT HAUL LINE INTERFACE UNIT IDT82V2082 .
The IDT82V2082 can be configured as a dual channel T1, E1 or J1 Line Interface Unit.

IDT82V2082 Features

* Dual channel T1/E1/J1 long haul/short haul line interfaces
* Supports HPS (Hitless Protection Switching) for 1+1 protection without external relays
* Receiver sensitivity exceeds -36 dB@772KHz and -43 dB@1024 KHz
* Programmable T1/E1/J1 switchability allowing one b

IDT82V2082 Applications

* Four different kinds of line terminating impedance, 75 Ω,100 Ω, 110 Ω and 120 Ω are selectable on a per channel basis. The chip also provides driver short-circuit protection and internal protection diode and supports JTAG boundary scanning. The chip can be controlled by either software or hardware.

📥 Download Datasheet

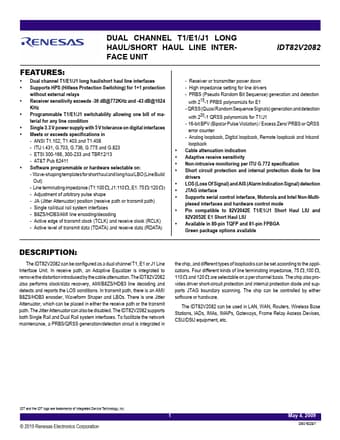

Preview of IDT82V2082 PDF
