ZSPM4121 Datasheet, Switch, IDT

ZSPM4121 Features

  • Switch
  • Threshold voltage options of 1.2V to 4.2V in 100mV steps (factory programmed)
  • Wide input voltage range: 1.2V to 5.5V
  • Supervisory over-current limit shutdow

PDF File Details

Part number:

ZSPM4121

Manufacturer:

IDT

File Size:

396.36kb

Download:

📄 Datasheet

Description:

Under-voltage load switch. The ZSPM4121 battery management load switch can be used to protect a battery from excessive discharge. It actively monitors the batte

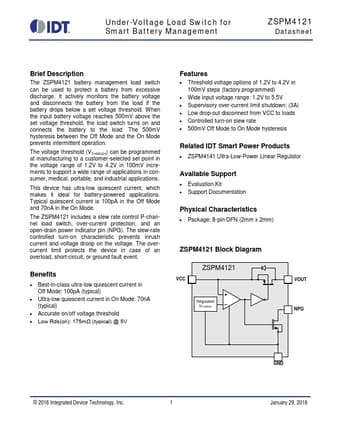

Datasheet Preview: ZSPM4121 📥 Download PDF (396.36kb)
Page 2 of ZSPM4121 Page 3 of ZSPM4121

ZSPM4121 Application

  • Applications in consumer, medical, portable, and industrial applications. This device has ultra-low quiescent current, which makes it ideal for batt
