ZSPM2000

True Digital PWM Controller

Renesas

ZSPM2000 Features

* such as protection and sequencing. Features

* Programmable digital control loop

* Advanced digital control techniques

* Tru-sample Technology™

* State-Law Control™ (SLC)

* Sub-cycle Response™ (SCR)

* Improved transient response and noise immunity

ZSPM2000 General Description

The ZSPM2000 is a configurable true-digital singlephase PWM controller for high-current, non-isolated DC/DC supplies. The ZSPM2000 includes a highspeed MOSFET driver for a synchronous step-down converter in a single-rail and single-phase configuration. The ZSPM2000 integrates a digital control loop,.

ZSPM2000 Datasheet (633.62 KB)

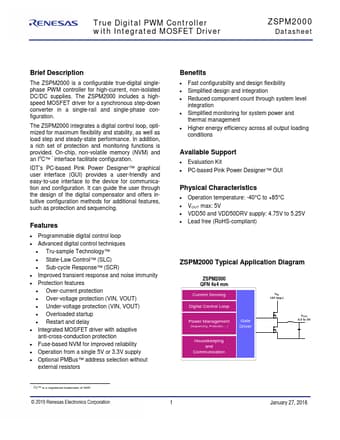

ZSPM2000 Datasheet Preview — Preview of ZSPM2000 PDF

Datasheet Details

Part number:

ZSPM2000

Manufacturer:

Renesas ↗

File Size:

633.62 KB

Description:

True digital pwm controller.
