ZSSC3170

Automotive Sensor Signal Conditioner

ZSSC3170 Features

* Complies with LIN specifications 1.3 / 2.0 / 2.1

* Configurable LIN publisher frame content

* Data conversion rate of up to 430Hz fully utilizes the maximum LIN channel capacity of 20kbit/s

* PWM high-side and low-side switches, support for LIN communication for end-of-line calibra

ZSSC3170 General Description

The ZSSC3170 is a CMOS integrated circuit for highly accurate amplification and sensor specific correction of bridge sensor signals. Featuring a maximum analog gain of 420, as well as extended offset compensation capabilities, the ZSSC3170 is adjustable to nearly all resistive bridge sensor types. D.

ZSSC3170 Datasheet (644.73 KB)

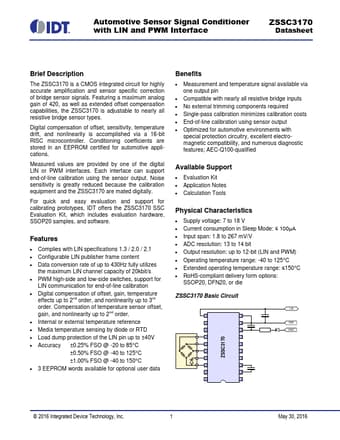

Preview of ZSSC3170 PDF

Datasheet Details

Part number:

ZSSC3170

Manufacturer:

IDT

File Size:

644.73 KB

Description:

Automotive sensor signal conditioner.
