IK6019A

High-Voltage High-Current Stepper Motor Driver

IK Semicon

IK6019A Features

* Eight Power Output LDMOS Transistors

* Output Current 250mA per Driver

* Output Voltage 24V

* Reset Function

* Integrated Suppression Diodes for Inductive Loads

* Temperature range is -40˚C to +85˚C

* DIP-16, SO-16 (Narrow) Packages TECHNICAL DATA IK6019A IK6019A Devi

IK6019A General Description

The IK6019A is a high-voltage, high-current array containing eight open drain LDMOS. The drain-current rating of single LDMOS is 250mA. Suppression diodes are included for inductive load driving. The IK6019A is supplied in 16 pin plastic DIP packages with a copper leadframe to reduce thermal resista.

IK6019A Datasheet (251.62 KB)

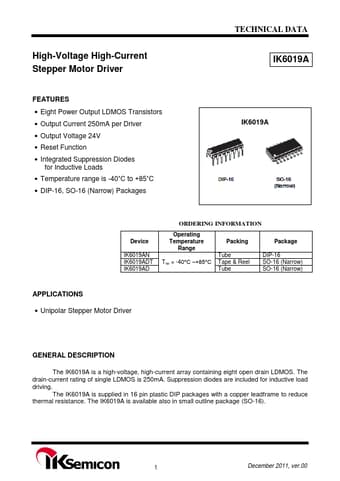

IK6019A Datasheet Preview — Preview of IK6019A PDF

Datasheet Details

Part number:

IK6019A

Manufacturer:

IK Semicon

File Size:

251.62 KB

Description:

High-voltage high-current stepper motor driver.
