IK6208, LED Driver IC

TECHNICAL DATA LED Driver IC .
IK6208 The IK6028 are anode-grid LED display drives 5. 8 digits x 9 segments and addition key scan function.

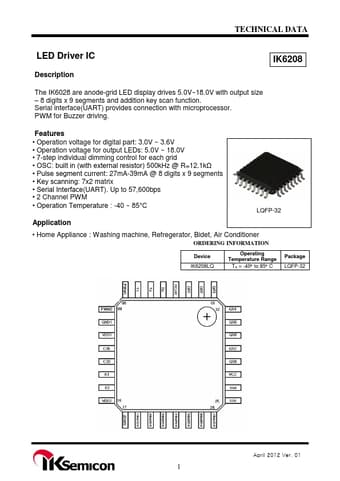

datasheet Preview Page 1 from Datasheet4u.com

IK6208-IKSemicon.pdf

IK6208 Datasheet Preview — Preview of IK6208 PDF

Datasheet Details

Part number:

IK6208

Manufacturer:

IK Semicon

File Size:

764.44 KB

Description:

LED Driver IC

Features

* Operation voltage for digital part: 3.0V ~ 3.6V
* Operation voltage for output LEDs: 5.0V ~ 18.0V
* 7-step individual dimming control for each grid
* OSC: built in (with external resistor) 500kHz @ R=12.1kΩ
* Pulse segment current: 27mA-39mA @ 8 digits x 9 s

Applications

* Display memory is updated by incrementing addresses. Please refer to the following diagram. Where: Command 1: Display Mode Setting Command 2: Data Setting Command Command 3: Address Setting Command Data 1 to n : Transfer Display Data (48 Bytes max. ) The following diagram shows the waveforms when upd
