IL386 - Low Voltage Audio Power AMP

IL386 Description

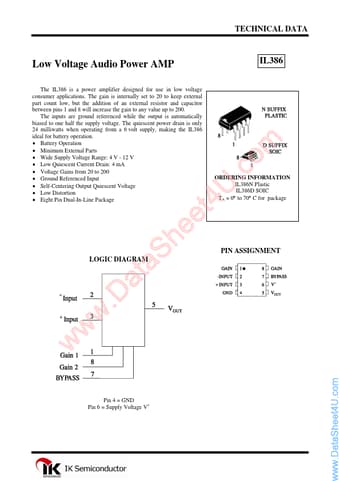

TECHNICAL DATA Low Voltage Audio Power AMP The IL386 is a power amplifier designed for use in low voltage consumer applications.The gain is internal.

IL386 Applications

* The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value up to 200. The inputs are ground referenced while the output is automatically biased to one half the supply voltage. The

📥 Download Datasheet

Preview of IL386 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IL386
Manufacturer
IK Semiconductor
File Size
211.01 KB
Datasheet
IL386_IKSemiconductor.pdf
Description
Low Voltage Audio Power AMP
