IL6840 - Two-Tone Telephone Tone Ringer

IL6840 Description

TECHNICAL DATA Telephone Tone Ringer with Bridge Diode The IL6840 is a monolithic integrated circuit telephone tone ringer with bridge diode, when co.
The IL6840 tone ringer derives its power supply by rectifying the AC ringing signal.

IL6840 Applications

* of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, VIN and VOUT should be constrained to the range GND≤(VIN or VOUT)≤VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or VCC). Unused outputs must be lef

📥 Download Datasheet

Preview of IL6840 PDF

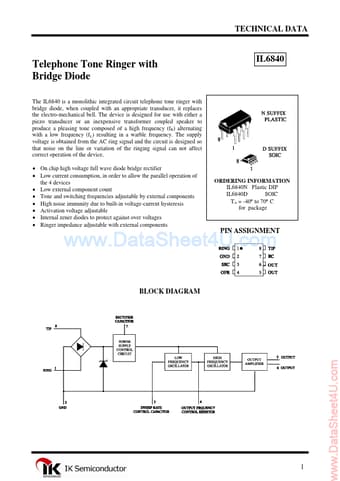

datasheet Preview Page 2 datasheet Preview Page 3
