IL612, IL610 (IL610 - IL614) Passive Input Digital Isolators

NVE

Description

www.DataSheet4U.com IL610 IL611 IL612 IL613 IL614 Passive Input Digital Isolators Functional Diagram .
The IL600 series are isolated signal couplers with CMOS or open drain transistor outputs which can be used to replace opto-couplers in many standard i.

📥 Download Datasheet

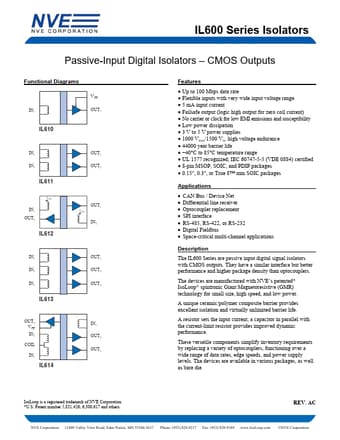

IL612 Datasheet Preview — This datasheet PDF includes multiple part numbers: IL612, IL610. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IL612, IL610
Manufacturer: NVE
File Size: 470.50 KB
Datasheet: IL610_NVE.pdf
Description: (IL610 - IL614) Passive Input Digital Isolators
Note: This datasheet PDF includes multiple part numbers: IL612, IL610.
Please refer to the document for exact specifications by model.

Features

* 40 Mbps Data Rate Very Wide Input Voltage Range Open Drain or CMOS Outputs Failsafe Output (Logic high output for zero coil current ) Output Enable 3.3 V or 5 V Power Supply 2500 V

Applications

* CAN Bus/ Device Net
* General Purpose Opto Replacement
* Wired-OR Alarms
* SPI interface DataSheet4U. com
* I2C
* RS 485, RS422, RS232
* Digital Fieldbus
