ILA3654

Vertical Deflection and Guard Circuit

ILA3654 Features

* Direct drive to the deflection coils 90 and  110 deflection  system Internal blanking guard circuit Internal voltage stabilizer QUICK REFERENCE DATA PARAMETER Output voltage Output current (peak-to-peak) Supply voltage Guard circuit output voltage Operating

ILA3654 General Description

Output stage and protection circuits The output stage consists of two Darlington configurations in class B arrangement. Each output transistor can deliver 1,5 A maximum and the VCEO is 60 V. Protection of the output stage is such that the operation of the transistors remains well within the SOAR are.

ILA3654 Datasheet (206.50 KB)

Preview of ILA3654 PDF

Datasheet Details

Part number:

ILA3654

Manufacturer:

IK Semiconductor

File Size:

206.50 KB

Description:

Vertical deflection and guard circuit.
TECHNICAL DATA VERTICAL DEFLECTION AND GUARD CIRCUIT (110°) The ILA3654 is a full performance vertical deflection output circuit for direct drive of t.

📁 Related Datasheet

ILA3654 - VERTICAL DEFLECTION AND GUARD CIRCUIT (Integral)
ILA3654,ILA3654Q VERTICAL DEFLECTION AND GUARD CIRCUIT (110°) GENERAL DESCRIPTION The ILA3654 is a full performance vertical deflection output circui.

ILA3654A - VERTICAL DEFLECTION AND GUARD CIRCUIT (Integral)
ILA3654, ILA3654A, ILA3654Q, ILA3654AQ СХЕМА КАДРОВОЙ РАЗВЕРТКИ С ВЫСОКОВОЛЬТНЫМ ВЫХОДОМ. Микросхема ILA3654, ILA3654А, ILA3654Q, ILA3654АQ схема кад.

ILA3654AQ - VERTICAL DEFLECTION AND GUARD CIRCUIT (Integral)
ILA3654, ILA3654A, ILA3654Q, ILA3654AQ СХЕМА КАДРОВОЙ РАЗВЕРТКИ С ВЫСОКОВОЛЬТНЫМ ВЫХОДОМ. Микросхема ILA3654, ILA3654А, ILA3654Q, ILA3654АQ схема кад.

ILA3654Q - VERTICAL DEFLECTION AND GUARD CIRCUIT (Integral)
ILA3654,ILA3654Q VERTICAL DEFLECTION AND GUARD CIRCUIT (110°) GENERAL DESCRIPTION The ILA3654 is a full performance vertical deflection output circui.

ILA3354 - IC for Electronic Ballasts (IK Semiconductor)
w Pinning Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 U 4 t Ballasts IC for Electronic e e h Short Description S integrated circuit triggers, The.

ILA3842 - Switching power controller (Integral)
ILA3842 МИКРОСХЕМА УПРАВЛЕНИЯ ИМПУЛЬСНЫМ ИСТОЧНИКОМ ПИТАНИЯ Назначение и краткая характеристика области применения. Микросхема управления импульсн.

ILA03N60 - LightMOS Power Transistor (Infineon Technologies)
.. ^ ILA03N60, ILP03N60 ILB03N60, ILD03N60 LightMOS Power Transistor C • • • • • • • New high voltage technology designed for ZV.

ILA1062 - TELEPHONE SPEECH NETWORK (IK Semiconductor)
TECHNICAL DATA TELEPHONE SPEECH NETWORK WITH DIALER INT`ERFACE FEATURES - Low DC line voltage; operates down to 1.6V (excluding polarity guard) - Vol.

TAGS

ILA3654 Vertical Deflection and Guard Circuit IK Semiconductor

Image Gallery

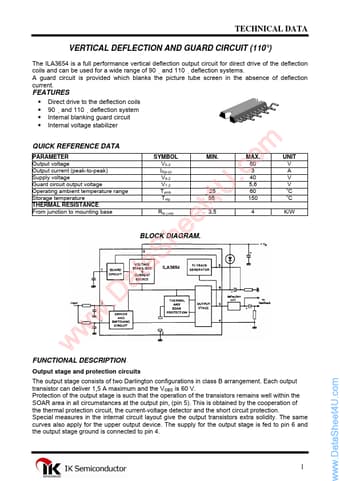

ILA3654 Datasheet Preview Page 2 ILA3654 Datasheet Preview Page 3
