IN24LC16B - 16K 2.5V CMOS Serial EEPROMs

Product Overview

IK Semiconductor

Datasheet Details

Part number	IN24LC16B
Manufacturer	IK Semiconductor
File Size	185.27 KB
Description	16K 2.5V CMOS Serial EEPROMs
Datasheet	IN24LC16B Datasheet

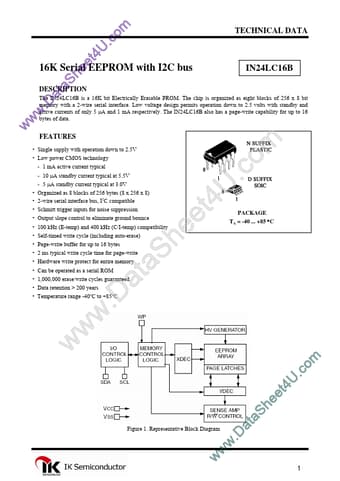

Additional preview pages of the IN24LC16B datasheet.

Product details

Description

U 4 t m o .c TECHNICAL DATA w w a t a is a 16K bit Electrically Erasable PROM.The chip is organized as eight blocks of 256 x 8 bit The IN24LC16B D memory with a 2-wire serial interface.Low voltage design permits operation down to 2.5 volts with standby and .currents active of only 5 µA and 1 mA respectively.The IN24LC16B also has a page-write capability for up to 16 w bytes of data.

Features

Sh IN24LC16B.
Single supply with operation down to 2.5V.
Low power CMOS technology - 1 mA active current typical - 10 µA standby current typical at 5.5V - 5 µA standby current typical at 3.0V.
Organized as 8 blocks of 256 bytes (8 x 256 x 8).
2-wire serial interface bus, I2C compatible.
Schmitt trigger inputs for noise suppression.
Output slope control to eliminate ground bounce.
100 kHz (E-temp) and 400 kHz (C/I-temp) compatibili.
