IN25AA040N - NONVOLATILE ELECTRICALLY ERASABLE PROM

Product Overview

Integral

Datasheet Details

Part number	IN25AA040N
Manufacturer	Integral
File Size	287.25 KB
Description	NONVOLATILE ELECTRICALLY ERASABLE PROM
Datasheet	IN25AA040N Datasheet
Note	This datasheet PDF includes multiple part numbers: IN25AA040N, IN25AA020N. Please refer to the document for exact specifications by model.

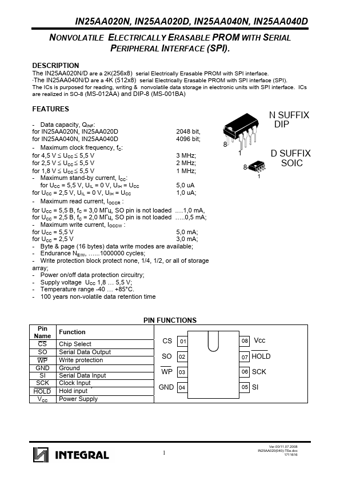

Additional preview pages of the IN25AA040N datasheet.

Product details

Description

The IN25АА020N/D are a 2K(256x8) serial Electrically Erasable PROM with SPI interface. The IN25АА040N/D are a 4K (512x8) serial Electrically Erasable PROM with SPI interface (SPI).

Features

- Data capacity, QINF: for IN25АА020N, IN25АА020D for IN25АА040N, IN25АА040D 2048 bit, 4096 bit; - Maximum clock frequency, fC: for 4,5 V ≤ UCC ≤ 5,5 V for 2,5 V ≤ UCC ≤ 5,5 V for 1,8 V ≤ UCC ≤ 5,5 V - Maximum stand-by current, ICC: for UCC = 5,5 V, UIL = 0 V, UIH = UCC for UCC = 2,5 V, UIL = 0 V, UIH = UCC 3 MHz; 2 MHz; 1 MHz; 5,0 uA 1,0 uA; - Maximum read current, IOCCR : for UCC = 5,5 В, fC = 3,0 МГц, SO pin is not loaded . …1,0 mA, for UCC = 2,5 В, fC = 2,0 МГц, SO pin is not loaded ….
