IN25AA160D, IN25AA080N NONVOLATILE ELECTRICALLY ERASABLE PROM

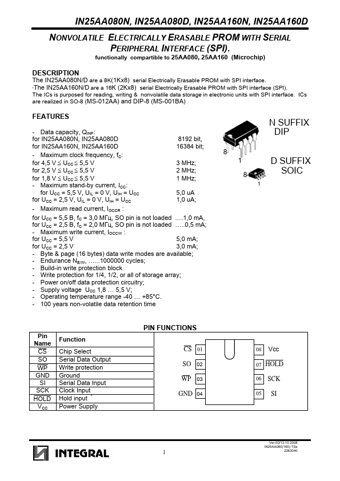

📥 Download Datasheet  Datasheet Preview Page 1

Description

IN25АА080N, IN25АА080D, IN25АА160N, IN25АА160D NONVOLATILE ELECTRICALLY ERASABLE PROM WITH SERIAL PERIPHERAL INTERFACE (SPI).functionally compartible.
The IN25АА080N/D are a 8K(1Kx8) serial Electrically Erasable PROM with SPI interface. The IN25АА160N/D are a 16K (2Kx8) serial Electrically Erasa.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IN25AA160D, IN25AA080N. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IN25AA160D, IN25AA080N
Manufacturer
Integral
File Size
281.45 KB
Datasheet
IN25AA080N-Integral.pdf
Description
NONVOLATILE ELECTRICALLY ERASABLE PROM
Note
This datasheet PDF includes multiple part numbers: IN25AA160D, IN25AA080N.
Please refer to the document for exact specifications by model.

Features

* - Data capacity, QINF: for IN25АА080N, IN25АА080D for IN25АА160N, IN25АА160D 8192 bit, 16384 bit; - Maximum clock frequency, fC: for 4,5 V ≤ UCC ≤ 5,5 V for 2,5 V ≤ UCC ≤ 5,5 V for 1,8 V ≤ UCC ≤ 5,5 V - Maximum stand-by current, ICC: for UCC = 5,5 V, UIL = 0 V, UIH = UCC for UCC = 2,5 V, UIL = 0
