IN74HC03A - Quad 2-Input NAND Gate

IN74HC03A Description

IN74HC03A Quad 2-Input NAND Gate with Open-Drain Outputs High-Performance Silicon-Gate CMOS IN74HC03A The IN74HC03A is identical in pinout to the L.

IN74HC03A Applications

* Outputs Directly Interface to CMOS, NMOS, and TTL
* Operating Voltage Range: 2.0 to 6.0 V
* Low Input Current: 1.0 µA
* High Noise Immunity Characteristic of CMOS Devices ORDERING INFORMATION IN74HC03AN Plastic IN74HC03AD SOIC TA = -55° to 125° C for all packages

📥 Download Datasheet

Preview of IN74HC03A PDF

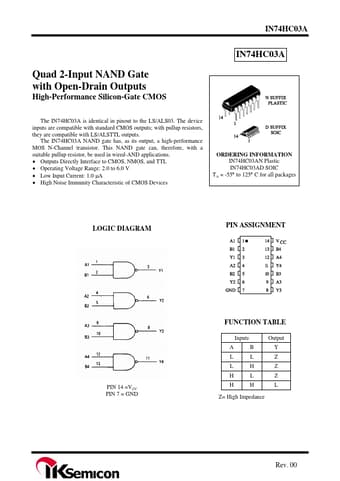

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IN74HC03A
Manufacturer
IK Semiconductor
File Size
125.47 KB
Datasheet
IN74HC03A_IKSemiconductor.pdf
Description
Quad 2-Input NAND Gate
