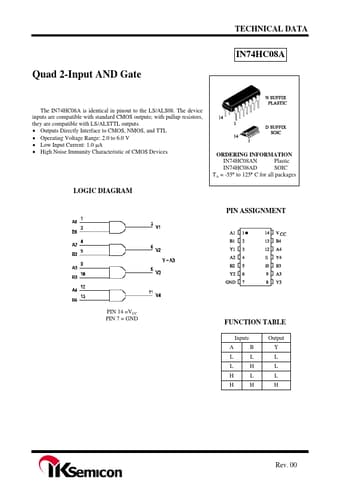

IN74HC08A
Quad 2-Input AND Gate
TECHNICAL DATA
The IN74HC08A is identical in pinout to the LS/ALS08. The device inputs are patible with standard CMOS outputs; with pullup resistors, they are patible with LS/ALSTTL outputs.
- Outputs Directly Interface to CMOS, NMOS, and TTL
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1.0 µA
- High Noise Immunity Characteristic of CMOS Devices
ORDERING INFORMATION
IN74HC08AN
Plastic
IN74HC08AD
SOIC
TA = -55° to 125° C for all packages
LOGIC DIAGRAM
PIN ASSIGNMENT
PIN 14 =VCC PIN 7 = GND
FUNCTION TABLE
Inputs AB LL LH HL HH
Output Y L L L H
Rev. 00
MAXIMUM RATINGS-
Symbol VCC VIN VOUT IIN IOUT ICC PD
Tstg TL
Parameter DC Supply Voltage (Referenced to GND) DC Input Voltage (Referenced to GND) DC Output Voltage (Referenced to GND) DC Input Current, per Pin
DC Output Current, per Pin
DC Supply Current, VCC and GND Pins Power Dissipation in Still Air, Plastic DIP-
- SOIC Package-
- Storage...
