IN74HC253A Datasheet - IK Semiconductor

IN74HC253A Dual 4-1 Data Selector/Multiplexer

TECHNICAL DATA IN74HC253A Dual 4-Input Data Selector/Multiplexer with 3-State Otputs High-Performance Silicon-Gate CMOS The IN74HC253A is identical in pinout to the LS/ALS253. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. The Address Inputs select one of four Data Inputs from each multiplexer. Each multiplexer has an active-low Output Enable control and a three-state noninverting output. Outputs Directl.

IN74HC253A Datasheet (233.11 KB)

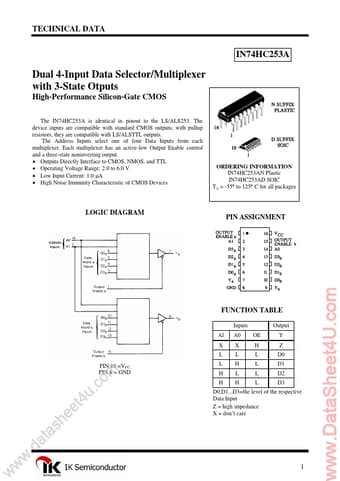

Preview of IN74HC253A PDF
IN74HC253A Datasheet Preview Page 2 IN74HC253A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC253A

Manufacturer:

IK Semiconductor

File Size:

233.11 KB

Description:

Dual 4-1 data selector/multiplexer.
