IN74HC257A Datasheet - IK Semiconductor

IN74HC257A Quad 2-1 Data Selector/Multiplexer

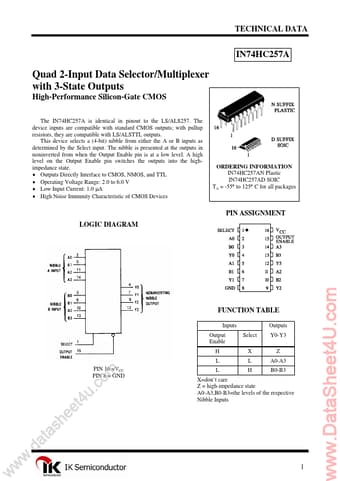

TECHNICAL DATA IN74HC257A Quad 2-Input Data Selector/Multiplexer with 3-State Outputs High-Performance Silicon-Gate CMOS The IN74HC257A is identical in pinout to the LS/ALS257. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device selects a (4-bit) nibble from either the A or B inputs as determined by the Select input. The nibble is presented at the outputs in noninverted from when the Output Enable pin is at.

IN74HC257A_IKSemiconductor.pdf

Preview of IN74HC257A PDF
IN74HC257A Datasheet Preview Page 2 IN74HC257A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC257A

Manufacturer:

IK Semiconductor

File Size:

225.06 KB

Description:

Quad 2-1 data selector/multiplexer.
