IN74HC258A Quad 2-1 Data Selector/Multiplexer

TECHNICAL DATA IN74HC258A Quad 2-Input Data Selectors/Multiplexer with 3-State Outputs High-Performance Silicon-Gate CMOS The IN74HC258A is identical in pinout to the LS/ALS258. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device selects a (4-bit) nibble from either the A or B inputs as determined by the Select input. The nibble is presented at the outputs in inverted form when the Output Enable pin is at a.

IN74HC258A_IKSemiconductor.pdf

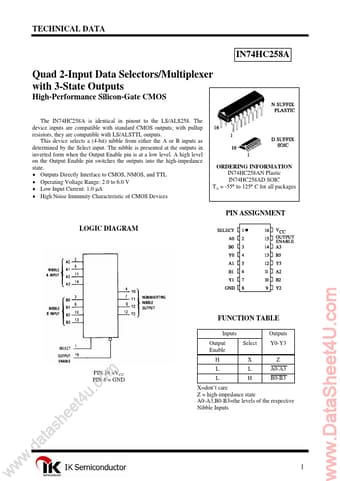

Preview of IN74HC258A PDF
IN74HC258A Datasheet Preview Page 2 IN74HC258A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC258A

Manufacturer:

IK Semiconductor

File Size:

225.26 KB

Description:

Quad 2-1 data selector/multiplexer.
