IW4012B - Dual 4-Input NAND Gate

📥 Download Datasheet

Datasheet preview – IW4012B

Datasheet Details

Part number IW4012B
Manufacturer IK Semiconductor
File Size 221.02 KB
Description Dual 4-Input NAND Gate
Datasheet download datasheet IW4012B Datasheet
Additional preview pages of the IW4012B datasheet.

📁 Similar Datasheet

  • IW4013B - Dual D Flip-Flop High-Voltage Silicon-Gate CMOS (ETC)
  • IW4051B - Analog Multiplexer Demultiplexer High-Performance Silicon-Gate CMOS (ETC)
  • IW4052B - Analog Multiplexer Demultiplexer High-Performance Silicon-Gate CMOS (ETC)
  • IW4066B - Quad Bilateral Switch High-Voltage Silicon-Gate CMOS (ETC)
  • IW4071B - Quad 2-Input OR Gate High-Voltage Silicon-Gate CMOS (ETC)
  • IW4093B - Quad 2-Input NAND Schmitt Triggers High-Voltage Silicon-Gate CMOS (ETC)
  • IW416 - Dual-band 1x1 Wi-Fi 4 and Bluetooth 5.2 Combo SoC (NXP)
Other Datasheets by IK Semiconductor

Full PDF Text Transcription

Click to expand full text

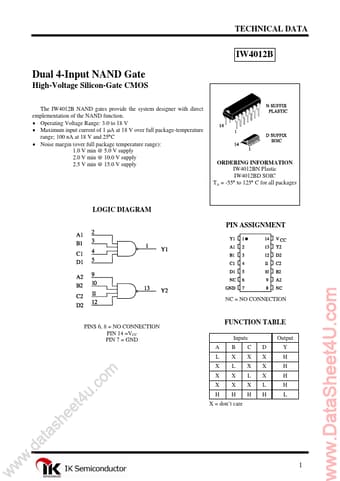

TECHNICAL DATA IW4012B Dual 4-Input NAND Gate High-Voltage Silicon-Gate CMOS The IW4012B NAND gates provide the system designer with direct emplementation of the NAND function. • Operating Voltage Range: 3.0 to 18 V • Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C • Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V supply ORDERING INFORMATION IW4012BN Plastic IW4012BD SOIC TA = -55° to 125° C for all packages LOGIC DIAGRAM PIN ASSIGNMENT NC = NO CONNECTION PINS 6, 8 = NO CONNECTION PIN 14 =VCC PIN 7 = GND A L X X X H FUNCTION TABLE Inputs B X L X X H C X X L X H D X X X L H Output Y H H H H L w w w .d h s a t a ee . u t4 m o c X = don’t care 1 www.
