ISM82 - 3.2 mm x 5.0 mm Ceramic Package SMD Oscillator

ISM82 Description

3.2 mm x 5.0 mm Ceramic Package SMD Oscillator Product .

ISM82 Features

* Wide Temperature Range (-55º to +125ºC) Frequency Stability option ±50 ppm over the full operating temperature range. Low Phase Noise RoHS Compliant Frequency 1.000 MHz to 125.000 MHz Output Level CMOS Duty Cycle Rise / Fall Time Output Load Frequency Stability Logic ‘0’ = 10% of Vcc max Logic

📥 Download Datasheet

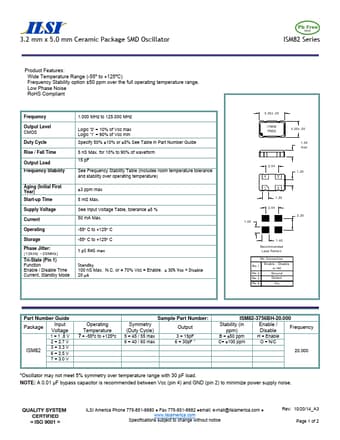

Preview of ISM82 PDF
datasheet Preview Page 2

Datasheet Details

Part number
ISM82
Manufacturer
ILSI
File Size
122.14 KB
Datasheet
ISM82-ILSIAmerica.pdf
Description
3.2 mm x 5.0 mm Ceramic Package SMD Oscillator
