ISM330IS

always-on 3-axis accelerometer and 3-axis gyroscope

ISM330IS Features

* ISM330IS LGA-14L (2.5 x 3.0 x 0.83 mm) typ. Product status link ISM330IS

* 3-axis accelerometer with selectable full scale: ±2/±4/±8/±16 g

* 3-axis gyroscope with selectable full scale: ±125/±250/±500/±1000/±2000 dps

* Embedded ISPU: ultralow-power, high-performance program

ISM330IS General Description

Product resources AN5850 (device application note) TN0018 (design and soldering) Product labels The ISM330IS is a 6-axis IMU (inertial measurement unit) system-in-package featuring a 3-axis digital accelerometer and a 3-axis digital gyroscope, boosting performance at 0.59 mA in high-performance mo.

ISM330IS Datasheet (5.79 MB)

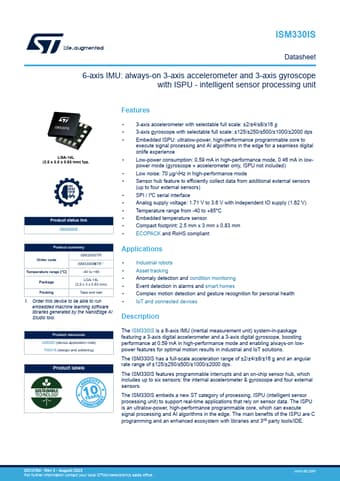

Preview of ISM330IS PDF

Datasheet Details

Part number:

ISM330IS

Manufacturer:

STMicroelectronics ↗

File Size:

5.79 MB

Description:

Always-on 3-axis accelerometer and 3-axis gyroscope.
