IM100

TTL to RS232 Translator

IM100 Features

* Converts 5V / 3.3V signals to RS232 levels Compact size (the size as mini mouse) Powers from target’s 5V or 3.3V supply Supports RS232 speeds of up to 1 mega bits per seconds Dimension: Length, 64.65 mm Width, 43.11 mm Height, 20.41 mm How to reach us Interface Masters, Inc. 2381 Zanker Road, Suit

IM100 General Description

Direction Pin 1 3.3V or 5V Target provides power Pin 2 Transmit data From target to remote RS232 device Pin 3 Receive Date From remote RS232 device to target Pin 4 GND Target Pigtail female connector pin out Nine pin DSUB connector Configuration: Gender: DTE1 Male2 Signal Pin 2 Pin 3 Descript.

IM100 Datasheet (114.64 KB)

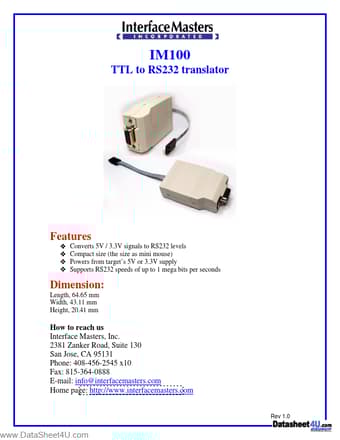

Preview of IM100 PDF

Datasheet Details

Part number:

IM100

Manufacturer:

IM

File Size:

114.64 KB

Description:

Ttl to rs232 translator.
