IM12B10CC1

Maxi IPM

IM12B10CC1 Features

* Package

* Fully isolated Dual In-Line molded module

* Very low thermal resistance due to DCB substrate

* Lead-free terminal plating; RoHS compliant Inverter

* 1200 V TRENCHSTOPTM IGBT7 S7

* Rugged 1200 V SOI gate driver technology with stability against transi

IM12B10CC1 General Description

The CIPOS™ Maxi IM12B10CC1 product offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. It is designed to control three phase AC motors and permanent magnet motors in variable speed drives applications such as low power m.

IM12B10CC1 Datasheet (629.92 KB)

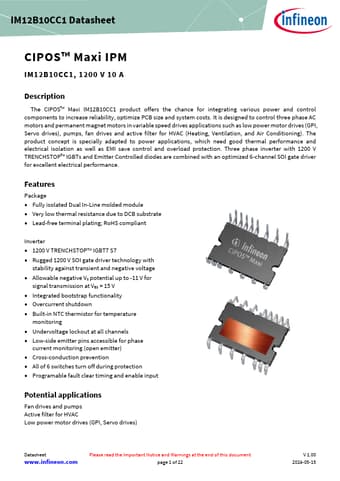

Preview of IM12B10CC1 PDF

Datasheet Details

Part number:

IM12B10CC1

Manufacturer:

Infineon ↗

File Size:

629.92 KB

Description:

Maxi ipm.
