IM12B20EC1, Maxi IPM

IM12B20EC1 Datasheet CIPOS™ Maxi IPM IM12B20EC1, 1200 V 20 A .
The CIPOS™ Maxi IM12B20EC1 product offers the chance for integrating various power and control components to increase reliability, optimize PCB size a.

IM12B20EC1-Infineon.pdf

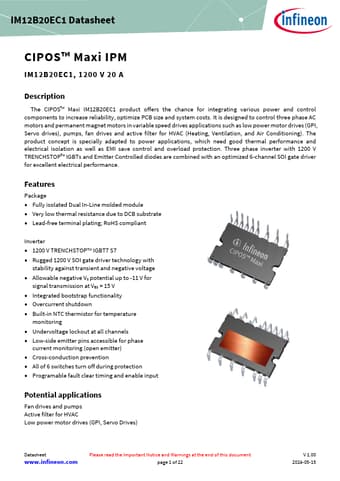

IM12B20EC1 Datasheet Preview — Preview of IM12B20EC1 PDF

Datasheet Details

Part number:

IM12B20EC1

Manufacturer:

Infineon ↗

File Size:

652.03 KB

Description:

Maxi IPM

Features

* Package
* Fully isolated Dual In-Line molded module
* Very low thermal resistance due to DCB substrate
* Lead-free terminal plating; RoHS compliant Inverter
* 1200 V TRENCHSTOPTM IGBT7 S7
* Rugged 1200 V SOI gate driver technology with stability against transi

Applications

* such as low power motor drives (GPI, Servo drives), pumps, fan drives and active filter for HVAC (Heating, Ventilation, and Air Conditioning). The product concept is specially adapted to power applications, which need good thermal performance and electrical isolation as well as EMI save control and
