M121-53DHA Datasheet - IMES

TFT Color LCD Module

M121-53DHA Features

* . 30.8cm(12.1 inch) diagonal . Native 262k colors (R/G/B 6 bit each) . SVGA 800 x 600 pixels . Low Reflection (Black Matrix) . Two lamps backlight . 250 cd/m2 high luminance . 278mm x 205mm x 12mm typ. (Need min. 3mm clearance from lamp cables) . 465 g typ. . 7.85 W typ. Application . Notebook PCs

M121-53DHA General Description

+RED5 +RED4 +RED3 +RED2 +RED1 +RED0 Red Data 5 (MSB) Red Data 4 Red Data 3 Red Data 2 Red Data 1 Red Data 0 (LSB) Red-Pixel-Data: Each red pixel’s brightness data consists of these 6 bits pixel data. +GREEN5 +GREEN4 +GREEN3 +GREEN2 +GREEN1 +GREEN0 Green Data 5 (MSB) Green Data 4 Green Data 3 G.

M121-53DHA Datasheet (512.60 KB)

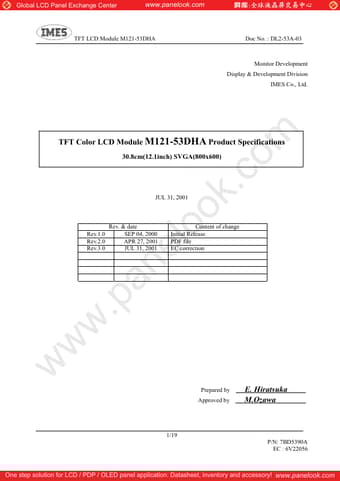

M121-53DHA Datasheet Preview — Preview of M121-53DHA PDF

Datasheet Details

Part number:

M121-53DHA

Manufacturer:

IMES

File Size:

512.60 KB

Description:

Tft color lcd module.
