M121MNS1-R1 - TFT LCD

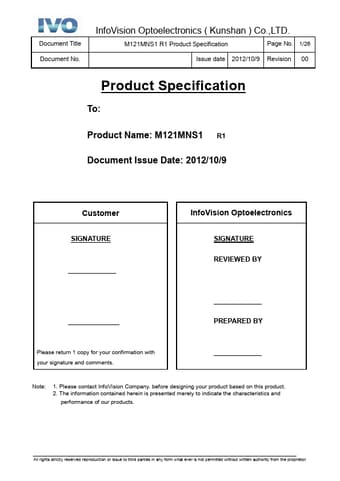

The M121MNS1-R1 by IVO is a TFT LCD. Below is the official datasheet preview.

Datasheet Details

Part number	M121MNS1-R1
Manufacturer	IVO
File Size	973.79 KB
Description	TFT LCD
Datasheet	M121MNS1-R1-IVO.pdf
Additional preview pages of the M121MNS1-R1 datasheet.

M121MNS1-R1 Product details

Description

-- New Description First issue.Remark _____________________________________________________________________ All rights strictly reserved reproduction or issue to third parties in any form what ever is not permitted without written authority from the proprietor.One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com Document Title Document No.InfoVision Optoelectronics ( Kunshan ) Co

Features

12.1” TFT LCD Panel.
LED Backlight System.
Supported (800x600 pixels) resolution.
Aspect ratio: 4:3.
Compatible with RoHS standard 1.3 Product Summary Items Specifications Unit Screen Diagonal 31(12.1inch)Diagonal cm Active Area 246.0 (H) x184.5 (V) mm Pixel format 800(H) x600(V) (1 pixel=R+G+B dot) pixel Pixel Pitch 0.3075(H)×0.3075(V) mm Pixel Arrangement R. G. B. Vertical Stripe - Display Mode White Luminance Normally White 350(Min),450(Typ) cd /m2.
