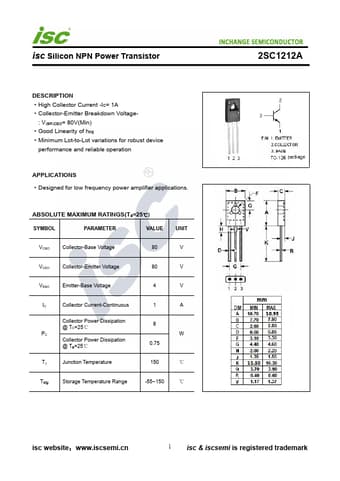

Part number: 2SC1212A
Manufacturer: INCHANGE
File Size: 210.56KB
Download: 📄 Datasheet
Description: NPN Transistor
*Designed for low frequency power amplifier applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALU.
*High Collector Current -IC= 1A
*Collector-Emitter Breakdown Voltage-
: V(BR)CEO= 80V(Min)
*Good Linearity of hFE
*Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
*Designed for low .
