2SC1402 NPN Transistor

2SC1402 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC1402 .
With TO-3 Package. High voltage. Wide area of safe operation. 100% avalanche tested. Minimum Lot-to-Lot variations for robust dev.

2SC1402 Applications

* Power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage VCEO VEBO IC PC TJ Collector-Emitter Voltage Emitter-Base Voltage Collector Current-Continuous Collector Power Dissipation Junction Temperature Tstg Storage Temperatu

📥 Download Datasheet

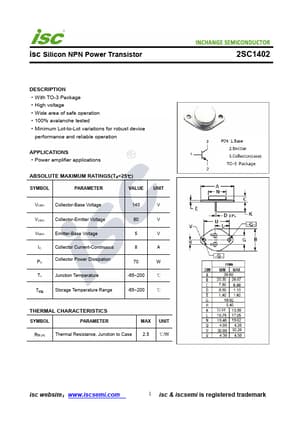

Preview of 2SC1402 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC1402
Manufacturer
INCHANGE
File Size
174.19 KB
Datasheet
2SC1402-INCHANGE.pdf
Description
NPN Transistor
